Common Mode Chokes for Automotive DC/DC converter
, HV/LV Common Mode Choke 4CMCN065R0-16H
, Automotive Common Mode Choke with warranty
Common Mode Chokes 4CMCN065R0-16H for Automotive HV/LV DC/DC converter
Common Mode Chokes 4CMCN065R0-16H for Automotive HV/LV DC/DC converter
FEATURES
- • Topology: 4 Phase Common Mode Choke
- • UNB Current: 165mA
- • Max Voltage: 440 Vpk
- • Ambient Temperature: -40ºC to +85ºC
- • Component temperature range -40ºC to +130ºC
- • Estimated Losses (100ºC)
- • Copper losses (3x16A in line, 48A in neutral) 10 W
- • Weight: Approx. 180 gram
APPLICATIONS
• Automotive EV/PHV AC/DC onboard battery chargers
• Automotive HV/LV DC/DC converters
ELECTRICAL SPECIFICATIONS
| INDUCTANCE at 25ºC |
L1 - 2 = L3– 4 =L5– 6= L7,8- 9,10 (140 kHz / 1 Vac/0.165A) |
1000 µH MIN |
| TURN-RATIO |
N1 – 2: N3– 4: N5– 6: N7,8– 9,10 |
8:8:8:8 |
| DC RESISTANCE at 25ºC |
DCR1 - 2 =DCR3– 4 = DCR5– 6 |
5.76 mΩ TYP (6.6mΩ MAX) |
| LEAKAGE INDUCTANCE |
Llk1-2 (140kHz/ 1Vac; 3-4, 5-6, 7,8 – 9,10 shorted) |
2.5 µH TYP (3.5µH) |
| DIELECTRIC STRENGHT |
Between Windings |
2500 Vac (50/60 Hz; 3 mA; 2 sec) |
Shape and Dimensions:

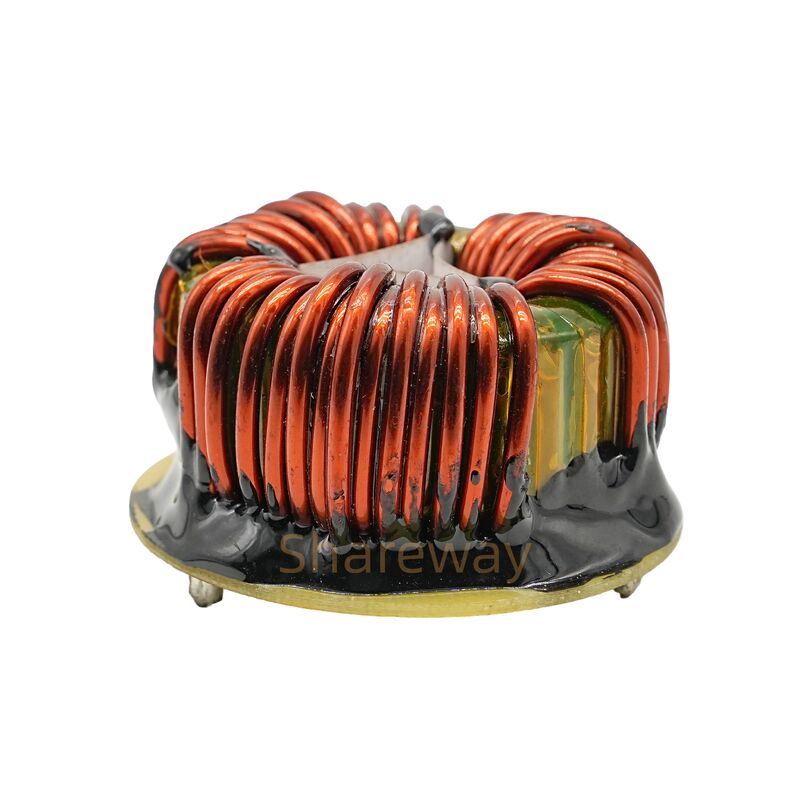

Product picture:
Common Mode Chokes 4CMCN065R0-16H for Automotive HV/LV DC/DC converter
